ST 062

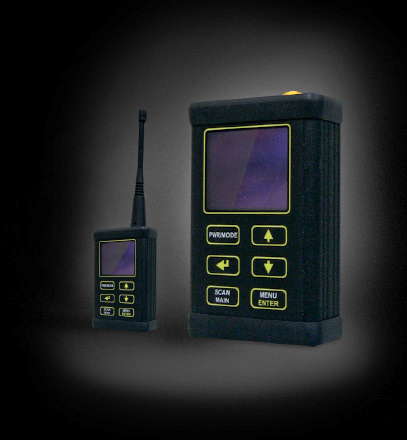

ST 062 Digital Mobile Device Detector

Detection of eavesdropping devices that use standard digital protocols as a transmission channel: GSM 900, 1800; UMTS (3G); WI FI; BLUETOOTH; DECT. evaluation of the intensity of data exchange in digital channels, detection of video camera signals transmitting information over the radio channel.

The ST 062 digital mobile device detector is designed to detect eavesdropping devices that use standard digital protocols as a transmission channel: GSM 900, 1800; UMTS (3G); WI FI; BLUETOOTH; DECT. In addition, ST0 62 allows you to estimate the intensity of data exchange in these digital channels, as well as to detect the signals of television cameras transmitting information over the radio channel at a frequency of about 2400 MHz.

Distinctive features:

• the ability to distinguish the signals of mobile devices from the signals of base stations;
• ability to evaluate the signal level of base stations;
• in addition to the automatic mode, in which all signals of the connected channels that exceed the set threshold are recorded in the protocol, there is a manual (search) mode, in which the user can determine the location of the detected signal source;
• the ability to set the threshold separately for each of the ranges and disable any of the detection channels;
• the presence of a relay output allows you to control external devices, for example, turn on the ST 202 "UDAV-M" cell phone suppressor, in the event of a detector operation.

The most common type of digital radio microphones are the so-called GSM bookmarks. They use a GSM channel to transmit information. The complexity of their detection is due to the fact that a conventional GSM detector is not able to distinguish the signal of the base station from the signal of a mobile device, which can be just "GSM bugs". Since the signals of base stations in urban conditions are present almost everywhere and their level is quite high, using a conventional electromagnetic field indicator with the GSM detection function, it is not always possible to detect exactly a "dangerous signal".

The GSM signal detector ST 062 allows you to clearly distinguish safe signals of base stations from potentially dangerous ones. The level indicator of the detected signal makes it possible to determine the location of the source of this signal in the tested room.

Device and operating principle of the mobile digital communication device detector ST 062:

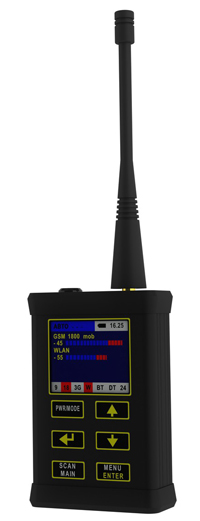

According to the principle of operation, the ST 062 mobile digital communication device detector is a direct conversion receiver with digital control and information output to a color OLED display.

The control is carried out using a six-button keyboard.

Signal detection is performed by sequentially viewing the frequency ranges of the detected data transmission standards. The detection threshold and the number of ranges to view are selected by the user.

The identification of signals is based on the analysis of the time parameters of the detected signals.

The special software "ST 062 PC DATA" provides the operation of the detector of mobile digital communication devices ST 062 under the control of a PC, which expands the user's ability to visualize the received information, save it and then analyze it.

Operating modes of the ST 062 mobile digital communication device detector:

• Automatic mode is designed for automatic detection of CRPS when they exceed the user-defined trigger threshold. When recording is enabled, information about the signal is recorded in the event log. Scheduled work is provided.
• The manual mode allows you to view the selected ranges. The signal strength and time chart are always displayed.
  This mode is used to determine:

  • the location of the CRPU;
  • values of the trigger threshold levels for subsequent operation in automatic mode.
  VIEWING THE SIGNAL LEVEL OF THE BASE STATIONS is only possible in this mode.
• The view protocol mode is used to view the protocol of events that occurred as a result of the product's operation in automatic mode. The time of the event occurrence, its duration, the type of event, and the signal strength are displayed.

Food products:

The ST 062 digital mobile device detector is powered by:

• Powered by the built-in LI-Pol battery, the battery life is about 3 hours when fully charged;
• power supply unit/ charger;
• USB port of the PC.

Working with the ST 062 Digital Mobile Device Detector computer :

The program "ST 062 PC DATA" is designed for:

• graphical display of the result of ST 062 operation in real time;
• full control of ST 062 with PC;
• setting advanced presets for the "MONITORING" mode»;
• download and display, both in graphical and text format, the result of the operation of the ST-062 mobile digital communication device detector in the "MONITORING" mode (event protocol).

The window for displaying the main menu of the program "ST 062 PC DATA".
